Features:
- All Solid State Technology Smooth Travel and Proven Soft Stop and Start
- Superior Engineering for True No Crossbar Design
- Less Than 0.1W Standby Power Draw
- 175 Pounds Lift Per Leg, 800 Newton Lift
- 1.7” Travel Per Second Standard
- Can be Configured for 2, 3 or 4 Legs
- Multiple Foot Lengths & Styles Available
- T-Style (No-Drop-in): 10“, 22”, 26“, 32”
- C-Style (With Drop-in): 10“, 17”, 22“, 26”, 32“
- TC Style (With Drop-in): 10”, 32“, 40”
- Heavy Duty One Piece Leg Mounting Plate
- UL Recognized Components
- Meets BIFMA Standards & UL Listed
Two Stage Base
- 20” of Height Range. Starting at 25 3/4” or 26 3/4“ (Excludes Surface)
- Fits Filing Under The Surface
- Software Based Impact Detection
Standard Foot Options
- C-style (with cutout towards the rear of the foot) comes in: 10″, 17″, 22″, 26″, 32″
- T-style (no cutout, center mount) comes in: 10″, 22″, 26″, 32″
- TC-style (cutout is in the center of foot) comes in 40″, 10″, 17″
- 24″ deep surfaces: use 22″ feet or order V-style base w/24″ feet
- 30″ deep surfaces: use 26″ feet or order V-style base w/24″ feet
- 36″+ surfaces: use 32″ or 40″ with CS-24 Cantilever Bracket for each longer foot
- 3-leg bases: typically use 10″C or T or 17″C foot in the corner, specify
Longer Foot Options
- 32″ FOOT, C-STYLE OR T-STYLE (add upcharge $88.00 each/per foot to base price)
- 40″ FOOT, T-STYLE **with cutout** (add upcharge $88.00 each/per foot to base price)
- L-Series CANTILEVER SUPPORT BRACKET (add upcharge $121.00 each/when using 32″ AND 40″ Feet)
Heavy Duty Option
- Meets ANSIIHFES 25.5” of Height Range
- Starting at 20 3/4“ or 21 3/4” (Excludes Surface)
- 250 Pounds Lift Per Leg to 1000 For 4 Legs

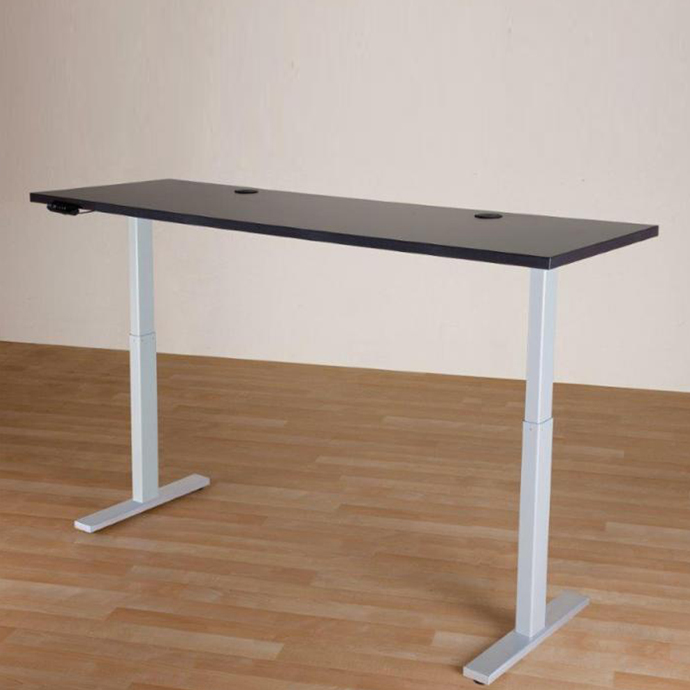

The Grand Stands L Series base is designed to lift and lower work surfaces with up to 350 pounds and instantly stop wherever needed over and over again for years, EVERY TIME, SAFELY.
Each leg contains a motor and sensors to keep the legs traveling at the exact same speed and height.
The “Soft start, soft stop” technology, powered by solid-state relays, protects the life of the motors and provides smooth and accurate height adjustment.
Safety is a must. There are many objects in an office that can interfere with the travel of the work surface. PIEZO technology is included on the L3 base for impact detection. PIEZO will sense the slightest interference or interruption in travel and the motors will stop and reverse direction. This will protect the most delicate of items like coffee cups or fingers.
The L2 base has software based impact detection. The software senses any interference in travel where the motors are forced to work harder and pull more energy. As a result, the motors stop and reverse direction. Not as sensitive as PIEZO but more effective than any other software based impact detection.
Our control box can be custom programmed to restrict the travel range in the up and down positions, an important feature in accommodating pedestals, overheads, counters, and other obstructions. For example, as with overheads, the travel can be set to stop close to the top, then continue up slowly to warn the user that the table is close to its top range.
